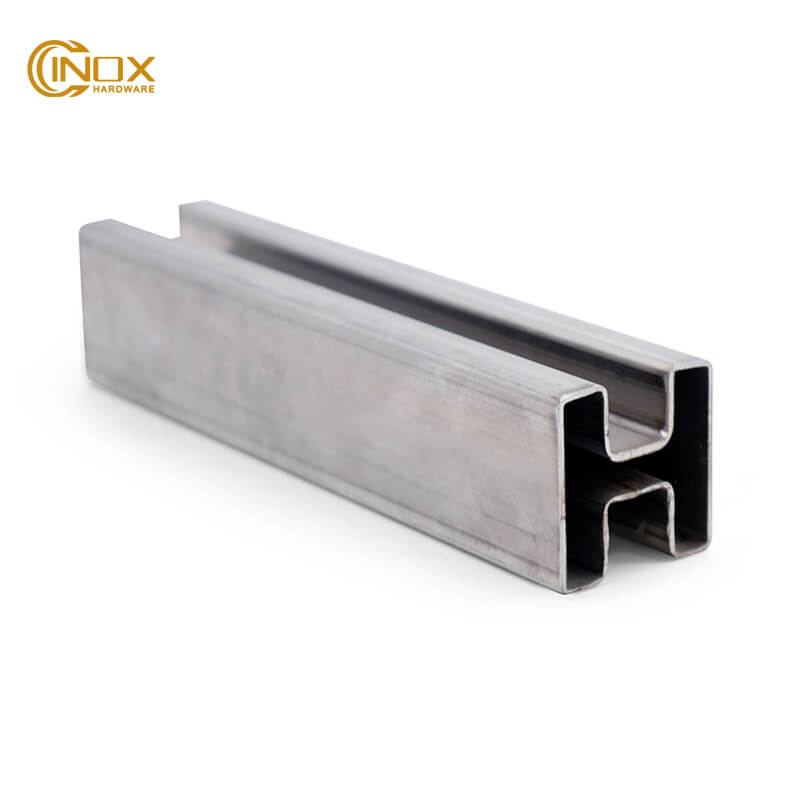

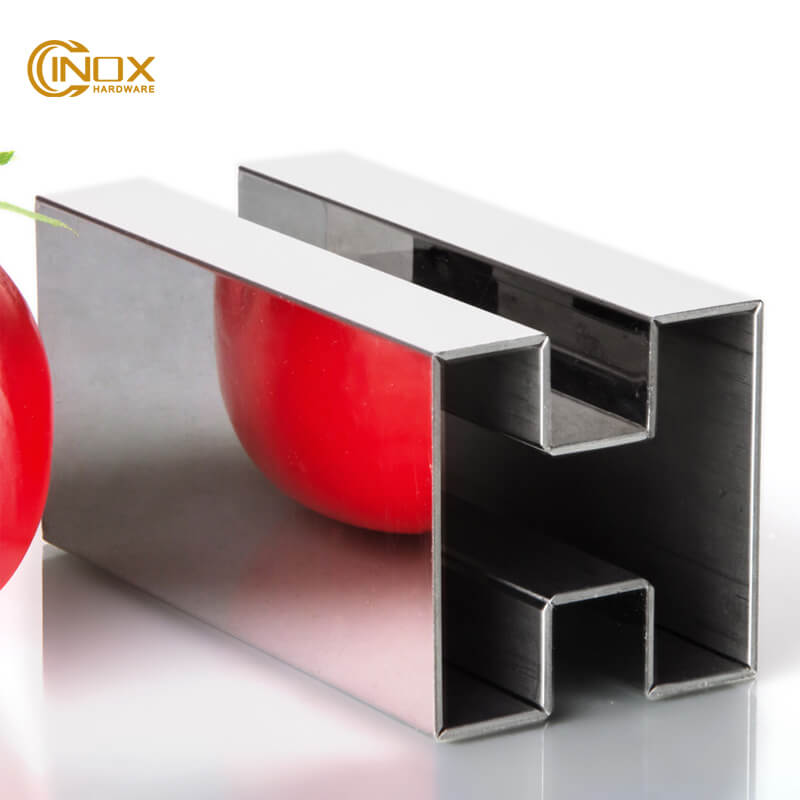

Stainless steel square double groove tube for corridor railings handrail post

This stainless steel top cap rail is designed to fit with a gasket over the top edge of your glass railing system. Not only does this top cap-rail provide a modern look, it also protects the top edge of your tempered glass lites from breakage.
5 (1591 Reviews)
  • Description

The most different quality square slot tube

 you've ever purchased !

Stainless Steel square slot tube
   304/316L/2205 Grade

  High stability and high corrosion resistance.

Stainless Steel square slot tube

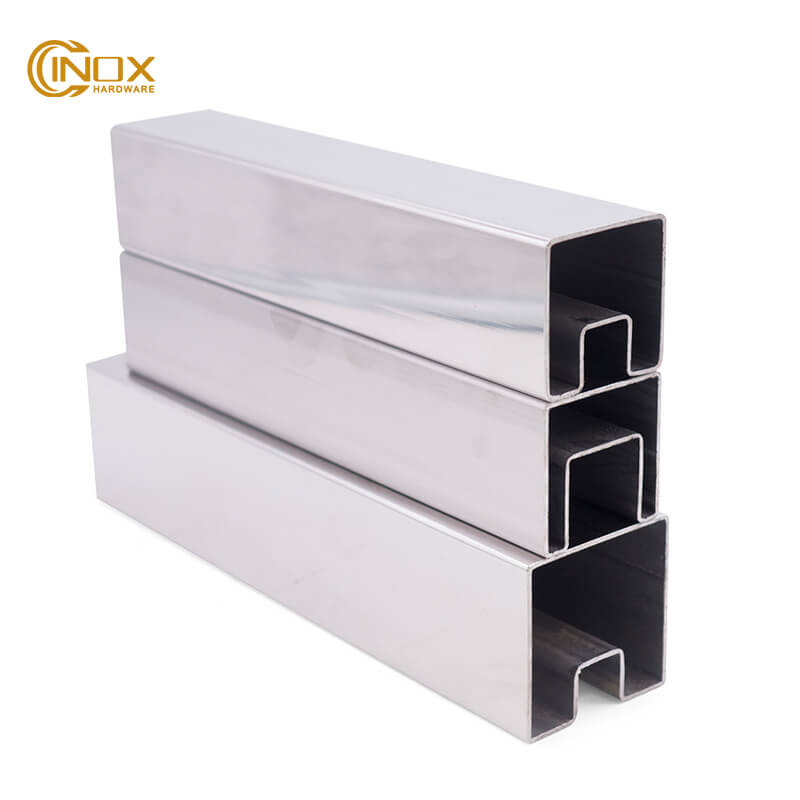

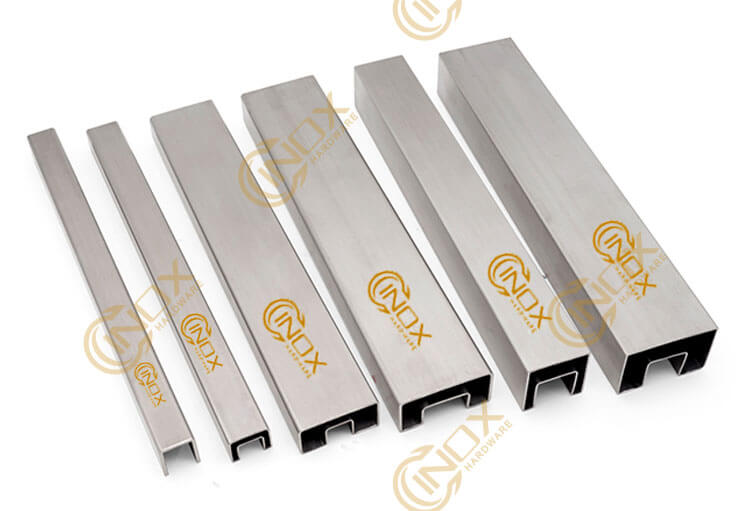

     Single Slot Square


Stainless Steel square slot tube
Stainless Steel square slot tube
Stainless Steel square slot tube

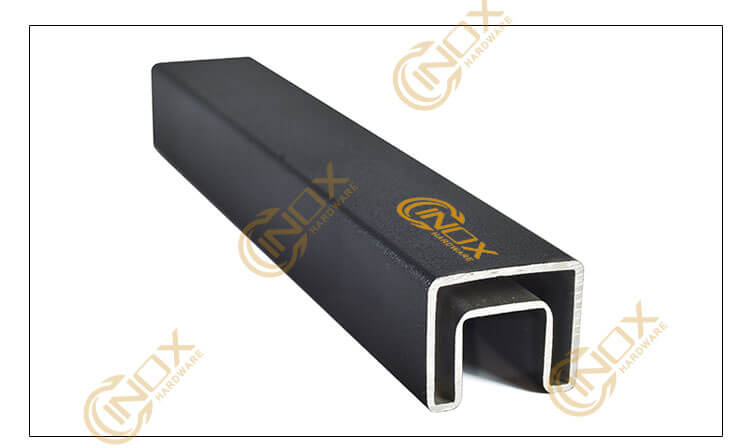

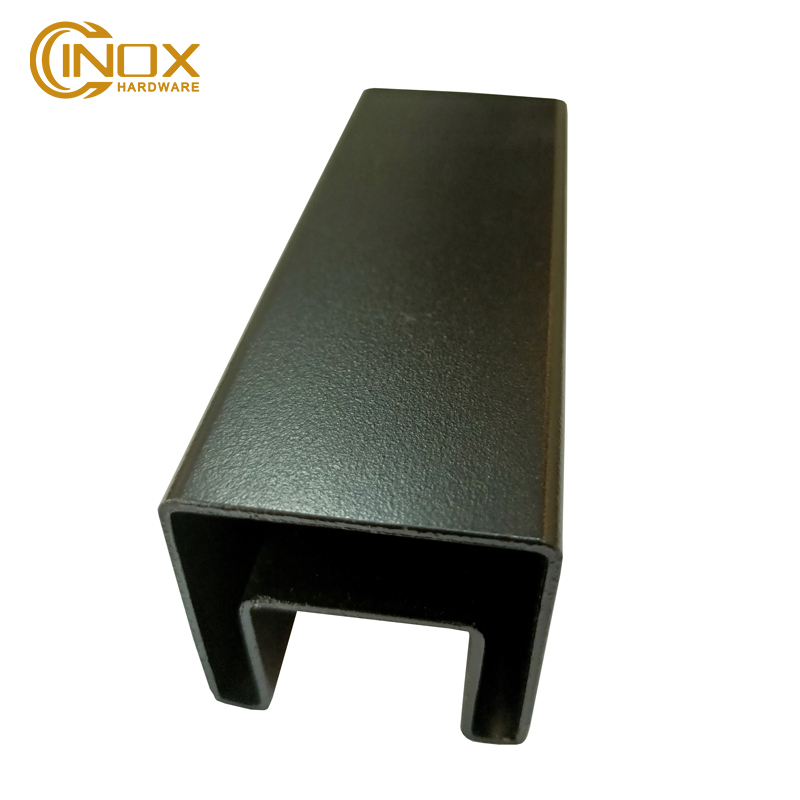

    Powder Coated(Matt Black)


Stainless Steel square slot tube

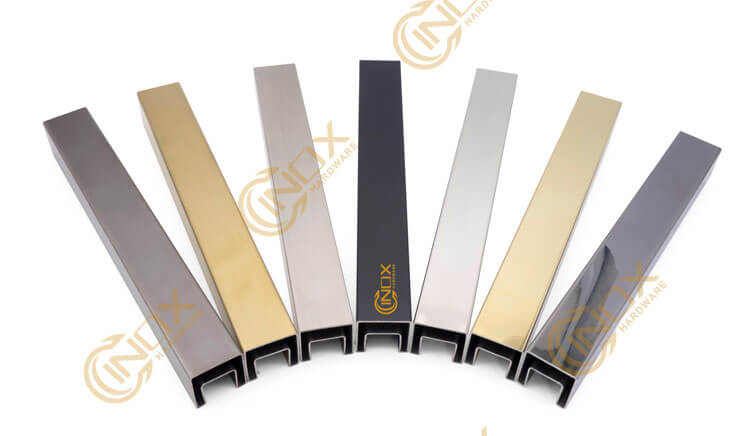

    PVD/Powder Coated


Stainless Steel square slot tube

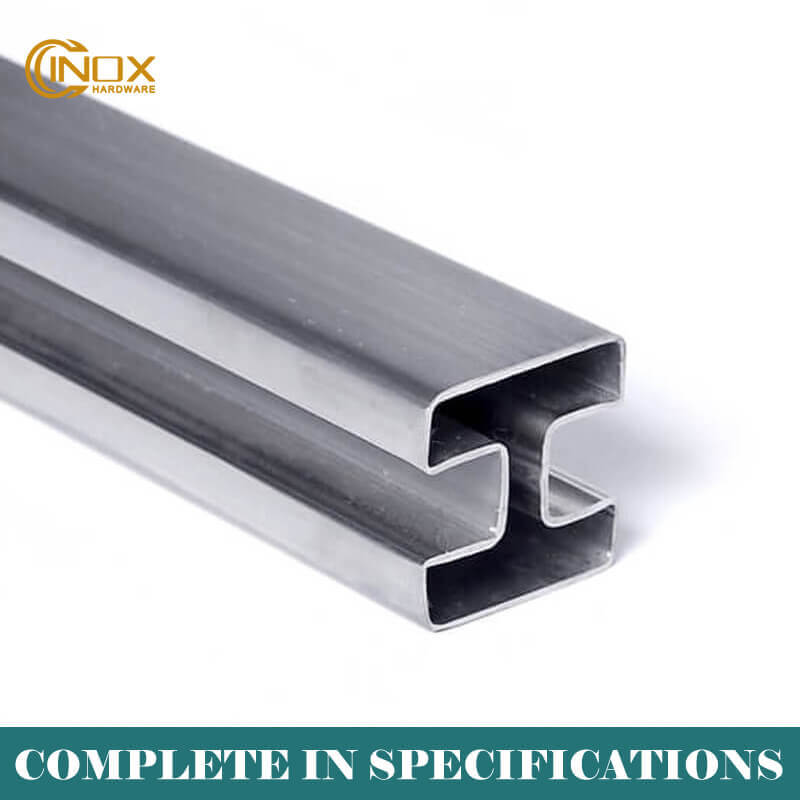

    Complete in specifications

The most different quality slotted tube you've ever purchased !
Stainless Steel Square Slot Tube Dimensions
Usage:Airport,subway station,shopping mall,building,hotel,villa,handrail glass system.
Grade 304:Indoor Grade 316L 2205: Outdoor/Seaside
Item

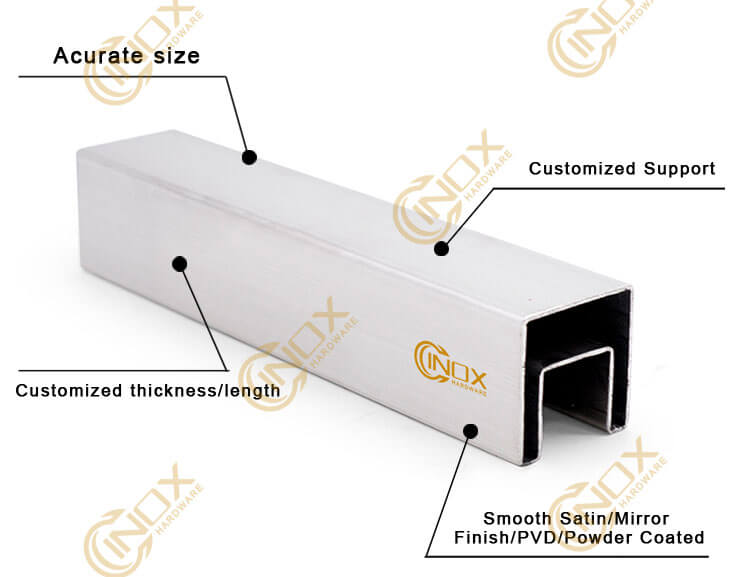

Accurate Size/Roll forming
OD(mm)
Slot(mm)【W*H】
Thickness(mm)
Length(mm)
1
Single Groove Square
25*21
14*14
1.0mm-2.0mm

5.8M/6M/

 Customized

2
25.4*21
14*14
3
28.3*25.4
15*15
4
30*30
15*15
5
40*30
24*24
6
40*40
15*15
7
40*40
20*20
8
40*40
24*24
9
50*25
15*15
10
50*50
15*15
11
50*50
20*20
12
50*50
25*25
13
60*30
28*15
14
60*40
15*15
15
60*40
20*20
16
60*40
24*24
17
60*60
25*25
18
75*45
25*25
19

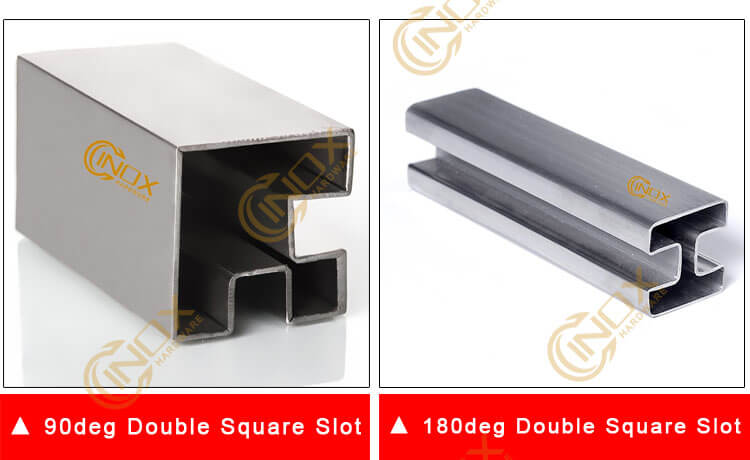

Double Groove Square 180deg
40*40
15*15
20
50*50
15*15
21
50*50
20*20

Stainless Steel square slot tube

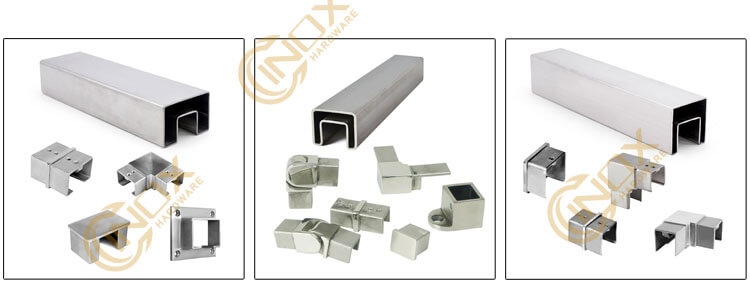

    One stop service for slot tube and relevant fitting
Stainless Steel square slot tube

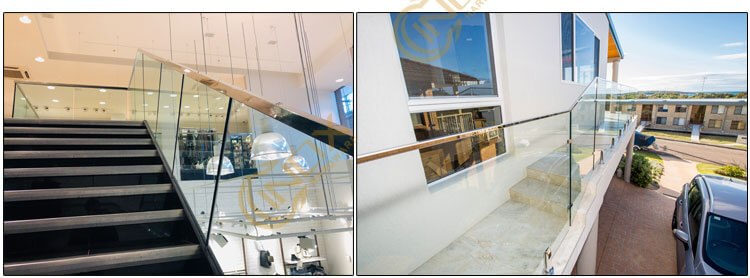

    our slot tubes and fittings can make your glass balustrade

stylish and elegant

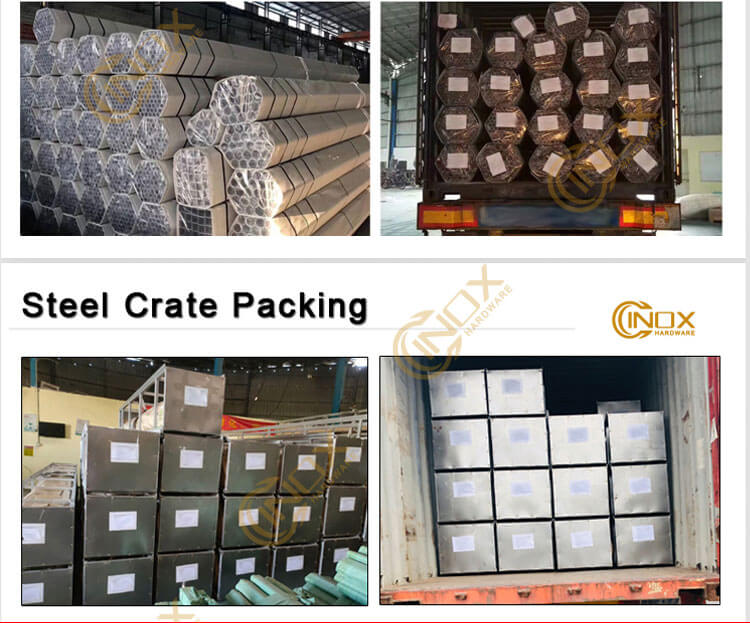

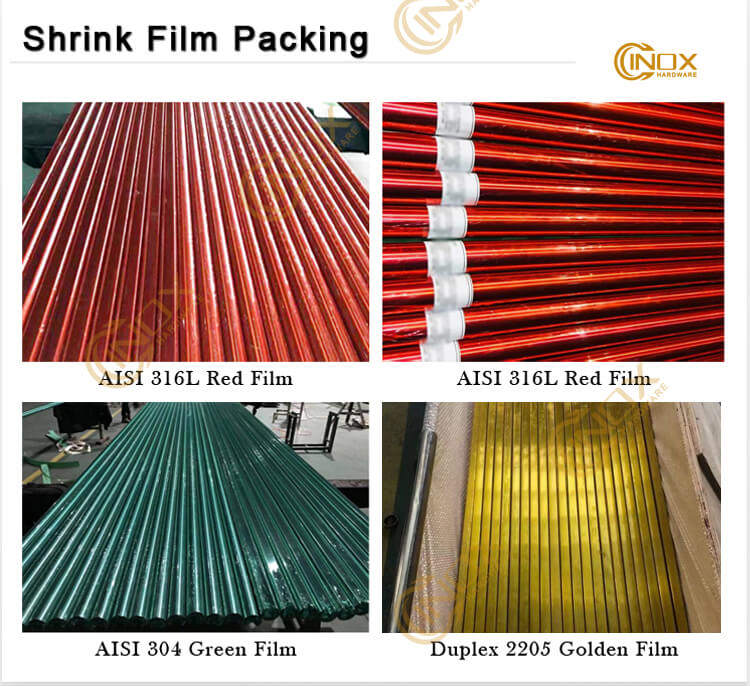

    Stainless steel Tube Packing     Stainless Steel square slot tube

Stainless Steel square slot tube
Stainless Steel square slot tube
 Handrail Fittings And Hardware Packing Stainless Steel square slot tube
